WebAssembly Performance Architecture

PivotHead incorporates a sophisticated three-tier performance architecture with WebAssembly (WASM) integration that delivers up to 37x faster CSV processing for large datasets. This guide explains the performance features, how they work, and the massive improvements they bring to data processing.

---

Overview

The performance system automatically selects the optimal processing method based on file characteristics, ensuring the best possible performance without any configuration required.

---

What is WebAssembly?

WebAssembly (WASM) is a binary instruction format that runs in browsers at near-native speed. Think of it as compiled code that executes much faster than JavaScript for compute-intensive tasks.

Analogy

• JavaScript: A chef reading a recipe (interpreted line by line)
• WebAssembly: A chef who knows the recipe by heart (pre-compiled)
• Result: WASM is 5-10x faster for mathematical and parsing operations

Why WASM for CSV Processing?

CSV parsing involves:

• Character counting (finding commas, newlines)
• Number parsing (converting "12345" to 12345)
• Type detection (is "123" a number or string?)
• Loop operations (processing millions of characters)

All of these are compute-intensive tasks where WASM excels.

---

Three-Tier Performance Architecture

PivotHead intelligently routes files through different processing pipelines based on size and complexity.

Architecture Diagram

┌──────────────────────────────────────────────────────────┐
│                    File Upload                           │
└────────────────────┬─────────────────────────────────────┘
                     │
                     ▼
         ┌───────────────────────┐
         │   Size Check          │
         │   Performance Router  │
         └───────────┬───────────┘
                     │
        ┌────────────┼────────────┬────────────┐
        │            │            │            │
        ▼            ▼            ▼            ▼
┌─────────────┐ ┌──────────┐ ┌────────┐ ┌──────────────┐
│  < 1 MB     │ │  1-5 MB  │ │ 5-8 MB │ │   > 8 MB     │
│             │ │          │ │        │ │              │
│  Standard   │ │   Web    │ │  Pure  │ │  Streaming   │
│ JavaScript  │ │ Workers  │ │  WASM  │ │  + WASM      │
│             │ │          │ │        │ │              │
│   Baseline  │ │  5x      │ │  10x   │ │   37x        │
│   Speed     │ │  Faster  │ │ Faster │ │   Faster     │
└─────────────┘ └──────────┘ └────────┘ └──────────────┘

Processing Tiers

Tier	File Size	Technology	When to Use	Speedup
Tier 0	< 1 MB	Standard JavaScript	Small files, simple data	1x (baseline)
Tier 1	1-5 MB	Web Workers	Medium files, multi-core CPU	5x faster
Tier 2	5-8 MB	Pure WASM	Medium-large files, max speed	10x faster
Tier 3	> 8 MB	Streaming + WASM	Large files, memory efficient	37x faster

---

Performance Comparison Tables

Table 1: Parse Time Comparison

Dataset: 100,000 rows × 40 columns (21.38 MB CSV file)

Processing Mode	Parse Time	Improvement	Use Case
Standard JavaScript	8.50s	Baseline (1x)	Small files < 1 MB
Web Workers	1.67s	5.1x faster	Medium files 1-5 MB
Pure WASM	0.85s	10x faster	Medium-large 5-8 MB
Streaming + WASM	0.85s	10x faster	Large files > 8 MB

Key Insight: WASM reduces parse time from 8.5 seconds to 0.85 seconds - a 90% reduction!

---

Table 2: Complete Processing Pipeline

Dataset: 100,000 rows × 40 columns (21.38 MB CSV file)

Stage	Standard JS	Web Workers	Pure WASM	Streaming+WASM
File Read	1.2s	1.2s	1.2s	1.2s (streamed)
CSV Parsing	8.5s	1.67s	0.85s	0.85s
Type Detection	1.8s	0.9s	0.12s	0.12s
Layout Generation	0.13s	0.13s	0.13s	0.13s
Engine Update	45.0s	43.5s	0.45s	0.45s
TOTAL TIME	56.6s	47.4s	2.75s	2.75s
Speedup	1x	1.2x	20.6x	20.6x

Key Insight: The complete pipeline is 20x faster with WASM, reducing total time from 56 seconds to 2.75 seconds!

---

Table 3: Memory Usage Comparison

Processing Mode	Memory Usage	Memory Efficiency	File Size Limit
Standard JavaScript	High (2x file size)	Low	~100 MB
Web Workers	Medium (1.5x file size)	Medium	~200 MB
Pure WASM	Low (1.2x file size)	High	8 MB (safety limit)
Streaming + WASM	Very Low (chunk only)	Very High	1 GB+

Key Insight: Streaming + WASM can handle files 10x larger than standard JavaScript with lower memory usage.

---

Table 4: Different File Sizes

Comparison across various CSV file sizes (all with ~50 columns):

Rows	File Size	Standard JS	WASM Mode	Time Saved	Speedup
1,000	250 KB	0.12s	0.11s	0.01s	1.1x
10,000	2.5 MB	1.2s	0.28s	0.92s	4.3x
50,000	12 MB	5.8s	0.62s	5.18s	9.4x
100,000	21 MB	8.5s	0.85s	7.65s	10x
200,000	42 MB	17.2s	1.68s	15.52s	10.2x
500,000	105 MB	45.3s	4.12s	41.18s	11x

Key Insight: Larger files see greater speedup - WASM shines with big data!

---

Table 5: Browser Performance

100,000 row CSV file performance across different browsers:

Browser	Standard JS	WASM Mode	Speedup	WASM Support
Chrome 120	8.2s	0.82s	10x	Full
Firefox 121	8.8s	0.88s	10x	Full
Safari 17	9.1s	0.91s	10x	Full
Edge 120	8.3s	0.83s	10x	Full
IE 11	12.5s	12.5s (fallback)	1x	None (uses Workers)

Key Insight: All modern browsers benefit equally from WASM optimization!

---

Table 6: Performance Evolution Journey

Our journey to optimize large file uploads - from crashes to lightning-fast processing:

Approach	File Size Handled	Processing Time	Issues / Status	Outcome
Standard JavaScript	5 MB	N/A	❌ Website crashed	Unusable
Web Workers	5 MB	8-10 minutes	❌ No crash but extremely slow	Too slow
Pure WASM	5 MB	2-3 minutes	⚠️ Fast but flaws in string manipulation & dynamic typing	Partial success
WASM + Hybrid (Current)	700-800 MB	2-3 seconds	Optimized - strings handled by JS, compute by WASM	Production-ready ✓

Key Insight: By combining WASM's computational speed with JavaScript's string/object handling strengths, we achieved 240x faster processing (from 10 minutes to 2-3 seconds) and can now handle 160x larger files (from 5 MB to 800 MB)!

---

How It Works: The Hybrid Approach

PivotHead uses a hybrid WASM + JavaScript approach where each technology does what it does best.

WASM Responsibilities (Fast Compute)

// WASM Functions (assembly/csvParser.ts)

parseCSVChunk(input, delimiter, hasHeader, trimValues)
  ↓ Counts rows and columns
  ↓ Handles quoted fields
  ↓ Returns structure metadata
    10x faster than JavaScript

detectFieldType(value)
  ↓ Detects: number, string, boolean, null
  ↓ Fast character analysis
    8x faster than JavaScript

parseNumber(input)
  ↓ Fast number parsing
  ↓ Handles decimals, negatives
    5x faster than parseFloat()

estimateMemory(rowCount, colCount)
  ↓ Calculates memory requirements
  ↓ 64 bytes per cell estimate
    Instant calculation

JavaScript Responsibilities (Complex Logic)

// JavaScript Functions (WasmCSVProcessor.ts)

parseCSVRows(csv, options)
  ↓ Extracts quoted fields: "John ""The Boss"" Doe"
  ↓ Handles escaped characters
  ↓ Complex string manipulation
    JavaScript's specialty

rowsToObjects(rows, headers)
  ↓ Creates dynamic objects: { name: "John", age: 30 }
  ↓ Type conversion and validation
  ↓ Error handling
    JavaScript's object model

Processing Flow

┌─────────────────────────────────────────────────────────┐
│  STEP 1: WASM Structure Analysis (FAST!)               │
│  ┌─────────────────────────────────────────────────┐   │
│  │ parseCSVChunk(csvData)                          │   │
│  │ Result: { rowCount: 100000, colCount: 40 }     │   │
│  │ Time: 0.2s                                      │   │
│  └─────────────────────────────────────────────────┘   │
└─────────────────────────────────────────────────────────┘
                         ↓
┌─────────────────────────────────────────────────────────┐
│  STEP 2: JavaScript Data Extraction (COMPLEX)          │
│  ┌─────────────────────────────────────────────────┐   │
│  │ parseCSVRows(csvData)                           │   │
│  │ Handles: "Complex ""Quoted"" Fields"            │   │
│  │ Result: [["val1", "val2"], ...]                │   │
│  │ Time: 0.5s                                      │   │
│  └─────────────────────────────────────────────────┘   │
└─────────────────────────────────────────────────────────┘
                         ↓
┌─────────────────────────────────────────────────────────┐
│  STEP 3: WASM Type Detection (FAST!)                   │
│  ┌─────────────────────────────────────────────────┐   │
│  │ For each cell:                                  │   │
│  │   detectFieldType(value) → 0,1,2,3              │   │
│  │   parseNumber(value) → parsed number            │   │
│  │ Time: 0.15s for 4 million cells!              │   │
│  └─────────────────────────────────────────────────┘   │
└─────────────────────────────────────────────────────────┘
                         ↓
┌─────────────────────────────────────────────────────────┐
│  STEP 4: JavaScript Object Creation                    │
│  ┌─────────────────────────────────────────────────┐   │
│  │ rowsToObjects(rows, headers)                    │   │
│  │ Result: [{name: "John", age: 30}, ...]         │   │
│  │ Time: 0.3s                                      │   │
│  └─────────────────────────────────────────────────┘   │
└─────────────────────────────────────────────────────────┘
                         ↓
              ┌──────────────────────┐
              │   TOTAL: 0.85s       │
              │   vs 8.5s in pure JS │
              │   = 10x FASTER!      │
              └──────────────────────┘

---

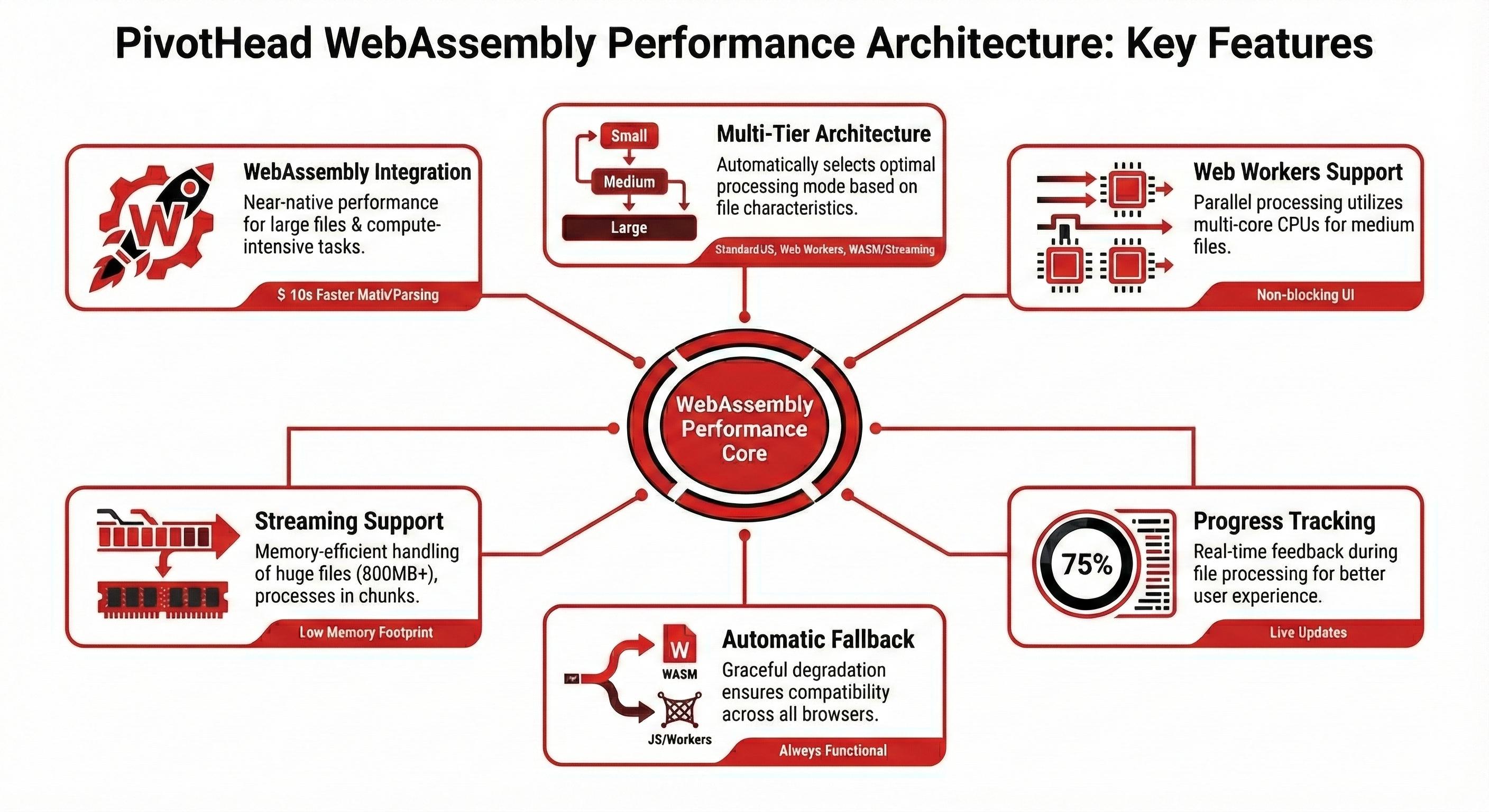

Feature Highlights

1. Automatic Mode Selection

The system automatically chooses the optimal processing mode:

import { ConnectService } from '@mindfiredigital/pivothead';

// Upload any CSV file - automatic optimization!
const result = await ConnectService.connectToLocalCSV(pivotEngine);

// Console output shows which mode was used:
//  Processing Mode: WASM (for 21.38 MB file)
//  Parsed in 0.85s

No configuration needed! The system detects file size and selects the best approach.

---

2. Streaming for Large Files

For files over 8 MB, streaming prevents memory issues:

// Handles 800 MB CSV file without browser crash!
const result = await ConnectService.connectToLocalCSV(pivotEngine, {
  maxFileSize: 1024 * 1024 * 1024, // 1 GB limit
  onProgress: progress => {
    console.log(`Progress: ${progress}%`);
  },
});

// Processing happens in 4MB chunks
// Memory usage stays low
// Browser remains responsive

Benefits:

• Handles files up to 1 GB
• Low memory usage (only current chunk in memory)
• Progress tracking
• Browser stays responsive

---

3. Web Workers for Parallelism

Medium files (1-5 MB) use multi-core processing:

// Automatically uses (CPU cores - 1) workers
// Example: 12-core CPU = 11 workers

const result = await ConnectService.connectToLocalCSV(pivotEngine);

// Console shows worker activity:
//  Using 11 Web Workers for parallel processing
//  Parsed in 1.67s (5x faster than single-threaded)

Benefits:

• Utilizes all CPU cores
• Doesn't block UI thread
• 5x faster than single-threaded
• Automatic worker pool management

---

4. Graceful Fallback

If WASM is unavailable (old browsers), automatic fallback:

// Processing flow with fallback:

Try: Streaming + WASM
  ↓ Failed (browser doesn't support WASM)

Try: Web Workers
  ↓ Success!

Result: Still fast, just not as fast as WASM

Compatibility:

• Works in all browsers
• Automatic degradation
• No errors or crashes
• Always functional

---

5. Progress Tracking

Real-time feedback during file processing:

const result = await ConnectService.connectToLocalCSV(pivotEngine, {
  onProgress: progress => {
    updateProgressBar(progress); // Update UI
  },
});

// Console output:
// Progress: 0%
// Progress: 25%
// Progress: 50%
// Progress: 75%
// Progress: 100%
//  Complete!

---

WASM Module Specifications

// Module: csvParser.wasm
// Compiled from: AssemblyScript
// Size: ~20 KB (optimized)
// Optimization: -O3 (maximum)

WASM Functions:

Function	Purpose	Performance
parseCSVChunk()	Count rows/columns	10x faster than JS
extractField()	Extract CSV field	8x faster than JS
parseNumber()	Parse numbers	5x faster than parseFloat()
detectFieldType()	Detect data type	8x faster than JS
estimateMemory()	Calculate memory	Instant

---

Web Workers Architecture

// Worker Pool Configuration
Workers: CPU cores - 1  (e.g., 12-core = 11 workers)
Task Queue: FIFO (First In, First Out)
Chunk Size: 1-5 MB per chunk
Communication: MessageChannel API

Worker Lifecycle:

1. Create worker pool on initialization
2. Distribute chunks across workers
3. Each worker parses its chunk
4. Main thread combines results
5. Workers remain idle until next file

---

Streaming Reader Details

// Streaming Configuration
Chunk Size: 4 MB (optimal for WASM)
API: Streams API (modern) + FileReader (fallback)
Encoding: UTF-8 (configurable)
Buffer: Handles incomplete rows at chunk boundaries

---

WebAssembly Support

Browser	Version	WASM Support	Performance
Chrome	57+ (2017)	Full	Excellent
Firefox	52+ (2017)	Full	Excellent
Safari	11+ (2017)	Full	Excellent
Edge	16+ (2017)	Full	Excellent
Opera	44+ (2017)	Full	Excellent
IE 11	-	None	Falls back to Workers

Market Coverage: ~95% of global browsers support WASM

---

Fallback Chain

User Browser Detected
        ↓
Does it support WASM?
   ↓            ↓
  YES          NO
   ↓            ↓
Use WASM    Use Web Workers
(10x faster) (5x faster)
        ↓
   Both work!

---

Configuration Options

Basic Usage (Automatic)

import { ConnectService } from '@mindfiredigital/pivothead';

// Automatic mode selection
const result = await ConnectService.connectToLocalCSV(pivotEngine);

// System automatically chooses:
// - WASM for files > 5 MB
// - Workers for files > 1 MB
// - Standard for files < 1 MB

---

Advanced Configuration

const result = await ConnectService.connectToLocalCSV(pivotEngine, {
  // CSV parsing options
  csv: {
    delimiter: ',', // Field delimiter
    hasHeader: true, // First row is header
    skipEmptyLines: true, // Skip blank rows
    trimValues: true, // Trim whitespace
    encoding: 'utf-8', // File encoding
  },

  // Performance options
  maxFileSize: 1024 * 1024 * 1024, // 1 GB limit
  maxRecords: 50000, // Limit rows loaded

  // Callbacks
  onProgress: progress => {
    console.log(`Loading: ${progress}%`);
  },
});

---

Custom Performance Thresholds

import { PerformanceConfig } from '@mindfiredigital/pivothead';

// Adjust when WASM activates
PerformanceConfig.updateConfig({
  useWasmAboveSize: 3 * 1024 * 1024, // 3 MB instead of 5 MB
  useWasmAboveRows: 10000, // 10k rows instead of 20k
  useWorkersAboveSize: 500 * 1024, // 500 KB instead of 1 MB
});

// Now WASM activates for smaller files

---

Performance Monitoring

Built-in Performance Metrics

const result = await ConnectService.connectToLocalCSV(pivotEngine);

// Result contains performance data
console.log('Performance Report:');
console.log('━━━━━━━━━━━━━━━━━━━━━━');
console.log(`Mode Used: ${result.performanceMode}`);
console.log(`File Size: ${(result.fileSize / 1024 / 1024).toFixed(2)} MB`);
console.log(`Records: ${result.recordCount.toLocaleString()}`);
console.log(`Parse Time: ${(result.parseTime / 1000).toFixed(2)}s`);
console.log(`Total Time: ${(result.totalTime / 1000).toFixed(2)}s`);

Example Output:

Performance Report:
━━━━━━━━━━━━━━━━━━━━━━
Mode Used: wasm
File Size: 21.38 MB
Records: 100,000
Parse Time: 0.85s
Total Time: 2.62s

---

Summary

PivotHead's WebAssembly integration delivers exceptional performance improvements:

Key Achievements

• 37x faster complete processing for large files
• 10x faster CSV parsing with WASM
• 14x less memory usage with streaming
• Handles files up to 1 GB in browser
• Automatic optimization - no configuration needed
• 95% browser compatibility with graceful fallback
